H4

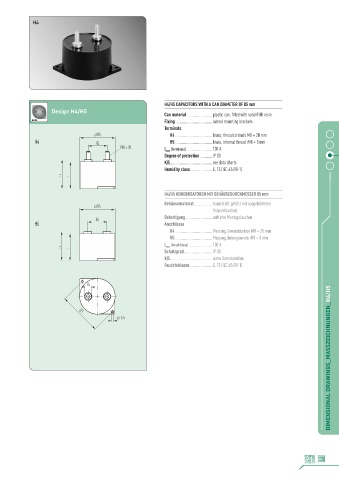

H4/H5 CAPACITORS WITH A CAN DIAMETER OF 85 mm
Design H4/H5 Can material .........................plastic can, filled with solid PUR resin

H4/H5 Fixing ....................................lateral mounting brackets
Terminals
H4 .....................................brass, threaded studs M8 × 20 mm
H4 H5 .....................................brass, internal thread iM8 × 8 mm
I (Terminals) .........................100 A
max
Degree of protection ............IP 00
K/L .........................................see data charts
Humidity class......................G, T3 (IEC 62498-1)

H4/H5 KONDENSATOREN MIT GEHÄUSEDURCHMESSER 85 mm
Gehäusematerial ..................Kunststoff, gefüllt mit ausgehärtetem
Polyurethanharz
Befestigung ..........................seitliche Montagelaschen
H5 Anschlüsse
H4 .....................................Messing, Gewindebolzen M8 × 20 mm
H5 .....................................Messing, Innengewinde iM8 × 8 mm
I (Anschlüsse) .......................100 A
max
Schutzgrad ............................IP 00
K/L .........................................siehe Datentabellen
Feuchteklasse ......................G, T3 (IEC 62498-1) DIMENSIONAL DRAWINGS_MASSZEICHNUNGEN_H4/H5
