R2

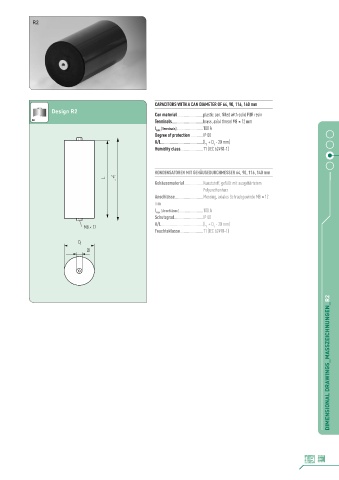

CAPACITORS WITH A CAN DIAMETER OF 64, 90, 116, 140 mm
Design R2 Can material .........................plastic can, filled with solid PUR resin

Terminals ..............................brass, axial thread M8 ×× 12 mm
I (Terminals) .........................100 A
max
Degree of protection ............IP 00
K/L .........................................(L + D - 20 mm)
1
1
Humidity class......................T1 (IEC 62498-1)

KONDENSATOREN MIT GEHÄUSEDURCHMESSER 64, 90, 116, 140 mm
Gehäusematerial ..................Kunststoff, gefüllt mit ausgehärtetem
Polyurethanharz
Anschlüsse ...........................Messing, axiales Schraubgewinde M8 ×× 12
mm
I (Anschlüsse) .......................100 A
max
Schutzgrad ............................IP 00
K/L .........................................(L + D - 20 mm)
1
1
Feuchteklasse ......................T1 (IEC 62498-1)

19 DIMENSIONAL DRAWINGS_MASSZEICHNUNGEN_R2
