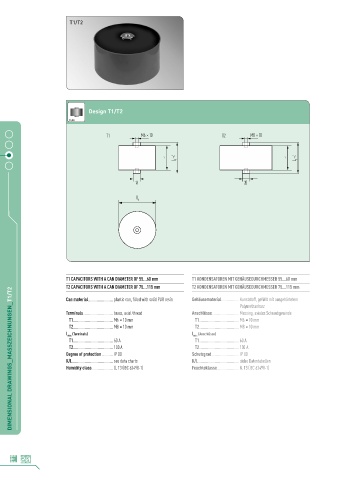

P. 20
T1/T2
Design T1/T2
T1 T2
T1 CAPACITORS WITH A CAN DIAMETER OF 55...60 mm T1 KONDENSATOREN MIT GEHÄUSEDURCHMESSER 55...60 mm
T2 CAPACITORS WITH A CAN DIAMETER OF 75...115 mm T2 KONDENSATOREN MIT GEHÄUSEDURCHMESSER 75...115 mm
DIMENSIONAL DRAWINGS_MASSZEICHNUNGEN_T1/T2
Can material ........................ plastic can, filled with solid PUR resin Gehäusematerial ................. Kunststoff, gefüllt mit ausgehärtetem
Polyurethanharz
Terminals ............................. brass, axial thread Anschlüsse .......................... Messing, axiales Schraubgewinde
T1 ....................................... M6 ×× 10 mm T1 ....................................... M6 ×× 10 mm
T2 ....................................... M8 ×× 10 mm T2 ....................................... M8 ×× 10 mm
I (Terminals) I (Anschlüsse)
max
max
T1 ....................................... 60 A T1 ....................................... 60 A
T2 ....................................... 100 A T2 ....................................... 100 A
Degree of protection ........... IP 00 Schutzgrad ........................... IP 00
K/L ........................................ see data charts K/L ........................................ siehe Datentabellen
Humidity class..................... G, T3 (IEC 62498-1) Feuchteklasse ..................... G, T3 (IEC 62498-1)
20
