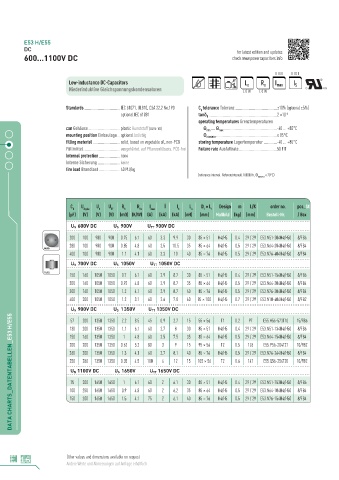

Page 16 - ELECTRONICON_Katalog_E51_E53_E55

E53 H/E55
DC for latest edition and updates
600...1100V DC check www.powercapacitors.info

HIGH HIGH
Low-inductance DC-Capacitors
Niederinduktive Gleichspannungskondensatoren LO W LO W

Standards ...................................IEC 61071, UL810, CSA 22.2 No.190 C tolerance Toleranz .........................................±10% (optional ±5%)
N
optional IEC 61881 tanδ 0 ...................................................................2 ××10 -4
operating temperatures Grenztemperaturen
can Gehäuse ...............................plastic Kunststoff (UL94: VO) Θ ... Θ max ....................................................-40 ... +85°C
min
mounting position Einbaulage ...optional beliebig Θ HOTSPOT ............................................................≤ 85°C
filling material ...........................solid, based on vegetable oil, non-PCB storing temperature Lagertemperatur .............-40 ... +85°C
Füllmittel ....................................ausgehärtet, auf Pflanzenölbasis, PCB-frei Failure rate Ausfallrate .....................................50 FIT
Internal protection .....................none
Interne Sicherung ......................keine
fire load Brandlast .....................40 MJ/kg
(reference interval_Referenzintervall 100000 h, Θ HOTSPOT ≤ 70°C)

C N U ripple U S U TT R S R th I max Î I S L e D ×× L 1 Design m L/K order no. pcs_Stk
1
(µF) (V) (V) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) Maßbild (kg) (mm) Bestell-Nr. / Box
900V U TT 900V DC
U N 600V DC U S
200 100 900 900 0.75 6.1 60 3.3 9.9 30 85 × 51 H4/H5 0.4 29 / 29 E53.N51-204H4/H50 8/FB6
280 100 900 900 0.85 4.8 60 3.5 10.5 35 85 × 64 H4/H5 0.5 29 / 29 E53.N64-284H4/H50 8/FB4
H4/H5
400 100 900 900 1.1 4.1 60 3.3 10 40 85 × 76 H4/H5 0.5 29 / 29 E53.N76-404H4/H50 8/FB4
1050V U TT 1050V DC
U N 700V DC U S
150 160 1050 1050 0.7 6.1 60 2.9 8.7 30 85 × 51 H4/H5 0.4 29 / 29 E53.N51-154H4/H50 8/FB6
200 160 1050 1050 0.92 4.8 60 2.9 8.7 35 85 × 64 H4/H5 0.5 29 / 29 E53.N64-204H4/H50 8/FB4
300 160 1050 1050 1.2 4.1 60 2.9 8.7 40 85 × 76 H4/H5 0.5 29 / 29 E53.N76-304H4/H50 8/FB4
400 200 1050 1050 1.2 3.1 60 2.6 7.8 60 85 × 100 H4/H5 0.7 29 / 29 E53.N10-404H4/H50 8/FB2
1350V U TT 1350V DC
U N 900V DC U S
DATA CHARTS_DATENTABELLEN_E53 H/E55
57 200 1350 1350 2.2 8.5 45 0.9 2.7 15 55 × 56 T1 0.2 97 E55.H56-573T10 15/FB6
130 200 1350 1350 1.1 6.1 60 2.7 8 30 85 × 51 H4/H5 0.4 29 / 29 E53.N51-134H4/H50 8/FB6
150 160 1350 1350 1 4.8 60 2.5 7.5 35 85 × 64 H4/H5 0.5 29 / 29 E53.N64-154H4/H50 8/FB4
200 200 1350 1350 0.63 5.2 80 3 9 15 95 × 56 T2 0.5 126 E55.P56-204T21 10/FB2
260 200 1350 1350 1.3 4.1 60 2.7 8.1 40 85 × 76 H4/H5 0.5 29 / 29 E53.N76-264H4/H50 8/FB4
250 280 1350 1350 0.35 4.5 100 4 12 15 105 × 56 T2 0.6 141 E55.Q56-254T20 10/FB2

U N 1100V DC U S 1650V U TT 1650V DC
75 200 1650 1650 1 6.1 60 2 6.1 30 85 × 51 H4/H5 0.4 29 / 29 E53.N51-753H4/H50 8/FB6
100 250 1650 1650 0.9 4.8 60 2 6.2 35 85 × 64 H4/H5 0.5 29 / 29 E53.N64-104H4/H50 8/FB4
150 200 1650 1650 1.5 4.1 75 2 6.1 40 85 × 76 H4/H5 0.5 29 / 29 E53.N76-154H4/H50 8/FB4

16 Other values and dimensions available on request
Andere Werte und Abmessungen auf Anfrage erhältlich
