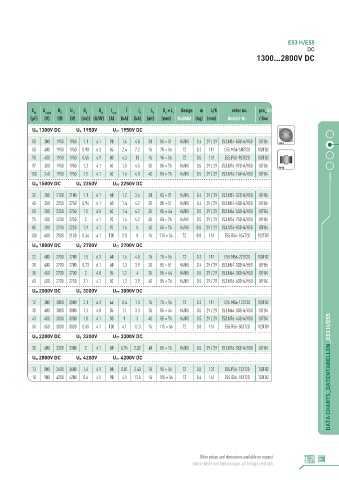

Page 17 - ELECTRONICON_Katalog_E51_E53_E55

E53 H/E55
DC
1300...2800V DC

C N U ripple U S U TT R S R th I max Î I S L e D ×× L 1 Design m L/K order no. pcs_Stk
1
(µF) (V) (V) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) Maßbild (kg) (mm) Bestell-Nr. / Box

U N 1300V DC U S 1950V U TT 1950V DC
50 300 1950 1950 1.1 6.1 70 1.6 4.8 30 85 × 51 H4/H5 0.4 29 / 29 E53.N51-503H4/H50 8/FB6 H4/H5
50 400 1950 1950 0.98 6.3 65 2.4 7.2 15 75 × 56 T2 0.3 111 E55.M56-503T20 10/FB2
90 400 1950 1950 0.55 4.9 80 4.3 13 15 95 × 56 T2 0.5 131 E55.P56-903T20 10/FB2
97 300 1950 1950 1.3 4.1 60 1.5 4.5 30 85 × 76 H4/H5 0.5 29 / 29 E53.N76-973H4/H50 8/FB6
100 240 1950 1950 1.5 4.1 60 1.6 4.8 40 85 × 76 H4/H5 0.5 29 / 29 E53.N76-104H4/H50 8/FB4

U N 1500V DC U S 2250V U TT 2250V DC
32 280 2100 2100 1.1 6.1 60 1.2 3.6 30 85 × 51 H4/H5 0.4 29 / 29 E53.N51-323H4/H50 8/FB6
40 350 2250 2250 0.94 6.1 60 1.4 4.2 30 85 × 51 H4/H5 0.4 29 / 29 E53.N51-403H4/H50 8/FB6
50 280 2250 2250 1.5 4.8 60 1.4 4.2 35 85 × 64 H4/H5 0.5 29 / 29 E53.N64-503H4/H50 8/FB4
75 280 2250 2250 2 4.1 70 1.4 4.2 40 85 × 76 H4/H5 0.5 29 / 29 E53.N76-753H4/H50 8/FB4
85 280 2250 2250 1.9 4.1 70 1.6 5 40 85 × 76 H4/H5 0.5 29 / 29 E53.N76-853H4/H50 8/FB4
100 480 2100 2100 0.34 4.1 100 2.8 8 15 115 × 56 T2 0.8 151 E55.R56-104T20 12/FB9

U N 1800V DC U S 2700V U TT 2700V DC
22 600 2700 2700 1.5 6.3 40 1.6 4.8 15 75 × 56 T2 0.3 111 E55.M56-223T20 10/FB2
30 400 2700 2700 0.73 6.1 60 1.3 3.9 30 85 × 51 H4/H5 0.4 29 / 29 E53.N51-303H4/H50 8/FB6
38 400 2700 2700 2 4.8 55 1.2 4 35 85 × 64 H4/H5 0.5 29 / 29 E53.N64-383H4/H50 8/FB4
60 400 2700 2700 2.1 4.1 50 1.3 3.9 40 85 × 76 H4/H5 0.5 29 / 29 E53.N76-603H4/H50 8/FB4

U N 2000V DC U S 3000V U TT 3000V DC
12 300 3000 3000 2.1 6.3 46 0.4 1.3 15 75 × 56 T2 0.3 111 E55.M56-123T20 10/FB2
30 400 3000 3000 1.3 4.8 55 1.1 3.3 35 85 × 64 H4/H5 0.5 29 / 29 E53.N64-303H4/H50 8/FB4
43 400 3000 3000 1.8 4.1 50 1 3 40 85 × 76 H4/H5 0.5 29 / 29 E53.N76-433H4/H50 8/FB4
50 650 3000 3000 0.55 4.1 100 4.1 12.3 15 115 × 56 T2 0.8 151 E55.R56-503T20 12/FB9

U N 2200V DC U S 3300V U TT 3300V DC
35 600 3300 3300 2 4.1 50 0.94 2.82 40 85 × 76 H4/H5 0.5 29 / 29 E53.N76-353H4/H50 8/FB4

U N 2800V DC U S 4200V U TT 4200V DC
13 800 3600 3600 1.6 4.9 80 0.81 2.43 15 95 × 56 T2 0.5 131 E55.P56-133T20 10/FB2 DATA CHARTS_DATENTABELLEN_E53 H/E55
18 900 4200 4200 0.6 4.5 90 4.5 13.5 15 105 × 56 T2 0.6 141 E55.Q56-183T20 10/FB2

Other values and dimensions available on request 17
Andere Werte und Abmessungen auf Anfrage erhältlich
