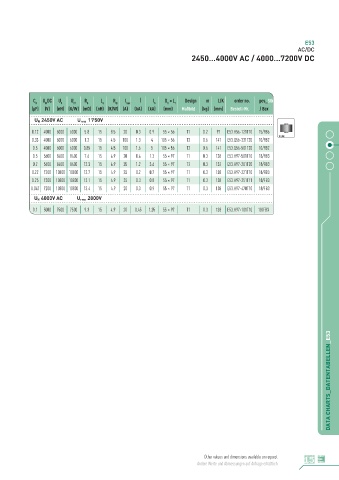

Page 15 - ELECTRONICON_Katalog_E51_E53_E55

E53
AC/DC
2450...4000V AC / 4000...7200V DC

C N U DC U S U TT R S L e R th I max Î I S D ×× L 1 Design m L/K order no. pcs_Stk
N
1
(µF) (V) (nH) (K/W) (mΩ) (nH) (K/W) (A) (kA) (kA) (mm) Maßbild (kg) (mm) Bestell-Nr. / Box
U N 2450V AC U rms 1750V

0.12 4000 6000 6000 5.8 15 8.5 20 0.3 0.9 55 × 56 T1 0.2 97 E53.H56-121T10 15/FB6
0.33 4000 6000 6000 1.2 15 4.5 100 1.3 4 105 × 56 T2 0.6 141 E53.Q56-331T20 10/FB2
0.5 4000 6000 6000 0.85 15 4.5 100 1.6 5 105 × 56 T2 0.6 141 E53.Q56-501T20 10/FB2
0.5 5600 8400 8400 7.6 15 4.9 20 0.4 1.3 55 × 97 T1 0.3 138 E53.H97-501T10 18/FB3
0.2 5600 8400 8400 12.3 15 4.9 35 1.2 3.6 55 × 97 T2 0.3 132 E53.H97-201T20 18/FB3
0.22 7200 10800 10800 13.7 15 4.9 25 0.2 0.7 55 × 97 T1 0.3 138 E53.H97-221T10 18/FB3
0.25 7200 10800 10800 12.1 15 4.9 25 0.3 0.8 55 × 97 T1 0.3 138 E53.H97-251T11 18/FB3
0.047 7200 10800 10800 13.4 15 4.9 20 0.3 0.9 55 × 97 T1 0.3 138 E53.H97-470T10 18/FB3
U N 4000V AC U rms 2800V

0.1 5000 7500 7500 9.3 15 4.9 20 0.45 1.35 55 × 97 T1 0.3 138 E53.H97-101T10 18/FB3

DATA CHARTS_DATENTABELLEN_E53

Other values and dimensions available on request 15
Andere Werte und Abmessungen auf Anfrage erhältlich
